Dura Blue axle install picture?

[ahcgt]

Getting ready to install my dura blue axle. Just curious if anyone had any pictures of theirs installed since it came with basically no instructions. If I could look at a picture I think it would help out quite a bit. Anyone?

[huskyohilux]

Getting ready to install my dura blue axle. Just curious if anyone had any pictures of theirs installed since it came with basically no instructions. If I could look at a picture I think it would help out quite a bit. Anyone?



This is the best I could do. Let me know if you need any other angles.

[ahcgt]

This is the best I could do. Let me know if you need any other angles.

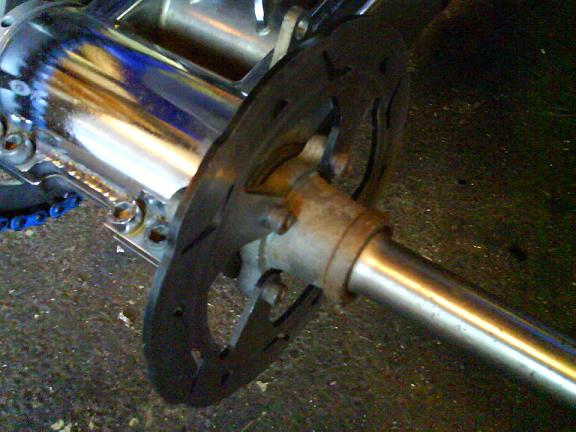

If you could get me a pic of the brake hub that'd be awesome .. thanks a lot

[huskyohilux]

If you could get me a pic of the brake hub that'd be awesome .. thanks a lot



I had my axle out last fall to replace the bearings. Took some turns to get it on with all spacers and brackets...hopefully I got it right:)

[ahcgt]

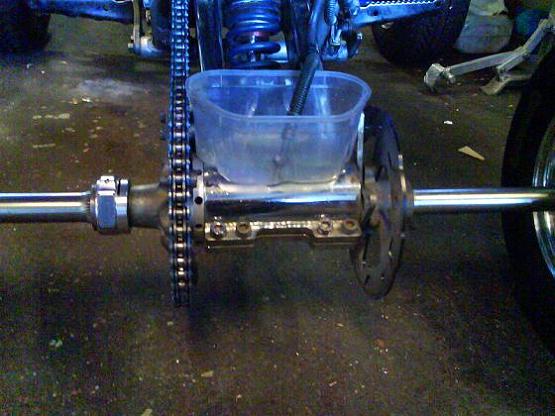

Huskyohilux thanks for all your help. This is what I've got after putting the dura blue in. I think its right but I haven't lock tighted anything togethor just yet ... seems to look right. Without any instructions its about the best I can figure out.

[huskyohilux]



Huskyohilux thanks for all your help. This is what I've got after putting the dura blue in. I think its right but I haven't lock tighted anything togethor just yet ... seems to look right. Without any instructions its about the best I can figure out.



Looks good from what I can see, the only thing that

[FireHead]

Here's mine:

[ahcgt]

Yup I just tightened mine by hand too. I think they all look about the same so they must be half way right. HAHA. Thanks for the pic too Firehead.
