huskyohilux Posted June 11, 2008 Report Posted June 11, 2008 Does anybody have a floating rear brake caliper on their swing arm? What is it good for? Is the caliper same as stock or aftermarket? I have a roll design swing arm and a caliper that just won Quote
FireHead Posted June 12, 2008 Report Posted June 12, 2008 An OEM caliper is a considered a floating caliper. :thumbsup: Quote
huskyohilux Posted June 12, 2008 Author Report Posted June 12, 2008 An OEM caliper is a considered a floating caliper. :thumbsup: So on a stock swing arm the caliper moves as well? Anybody have a picture of it, I Quote
FireHead Posted June 12, 2008 Report Posted June 12, 2008 So on a stock swing arm the caliper moves as well?Anybody have a picture of it, I Quote

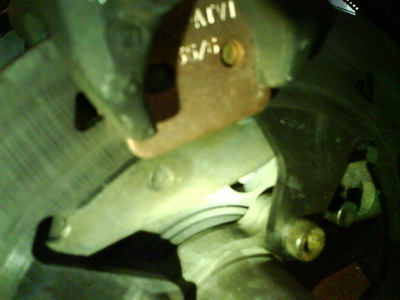

huskyohilux Posted June 12, 2008 Author Report Posted June 12, 2008 (edited) Here is a picture of one of mine. The claiper floats on the two pins that are part of the two large, flat head, hex fastenrs you can see below the e-brake block-off plate. This particular caliper design is common to quite a few ATV's. Mine looks pretty much the same...when you put new pads on, is there a bracket that gets in the way when the piston is pushed all the way in? On the picture you can see some scratches where I had to grind down, where the lower right corner of the pad meets the rotor. Edited June 12, 2008 by huskyohilux Quote
FireHead Posted June 13, 2008 Report Posted June 13, 2008 Mine looks pretty much the same...when you put new pads on, is there a bracket that gets in the way when the piston is pushed all the way in? On the picture you can see some scratches where I had to grind down, where the lower right corner of the pad meets the rotor. Something is spaced wrong or the caliper has seized on the pins it sounds like. Can you take a top down picture so I can see if you have a spacing issue or a caliper issue? :thumbsup: Quote
huskyohilux Posted June 13, 2008 Author Report Posted June 13, 2008 Something is spaced wrong or the caliper has seized on the pins it sounds like. Can you take a top down picture so I can see if you have a spacing issue or a caliper issue? :thumbsup: Yes, maybe it has seized on the pin. It didn Quote
huskyohilux Posted June 13, 2008 Author Report Posted June 13, 2008 (edited) Yes, maybe it has seized on the pin. It didn Edited June 13, 2008 by huskyohilux Quote

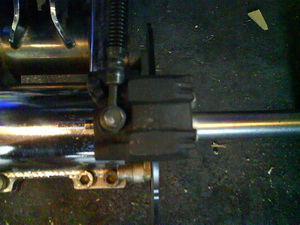

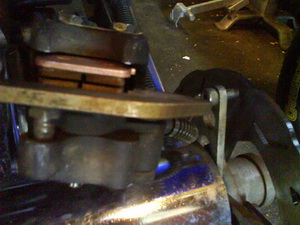

huskyohilux Posted June 13, 2008 Author Report Posted June 13, 2008 (edited) Removed the caliper. Here Edited June 13, 2008 by huskyohilux Quote

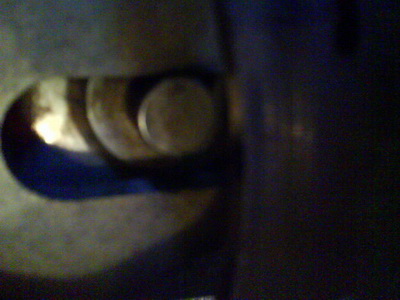

FireHead Posted June 14, 2008 Report Posted June 14, 2008 Is this space for the bracket to move up and down in as it should be? measurement is like 5/16" There is supposed to be a bushing on the stud that the caliper mounting bracket that mounts to your axle carrier rides on in that picture. Quote
huskyohilux Posted June 14, 2008 Author Report Posted June 14, 2008 The gold colored bracket in that picture is what floats back and forth in the same direction as the pads. It should but doesn Quote
FireHead Posted June 14, 2008 Report Posted June 14, 2008 That piston bolt sure was stuck :sweat: roundened the allen hole but finally got it off. Was rusted and the seals were torn. I guess that some grease in there from the beginning wouldn Quote
